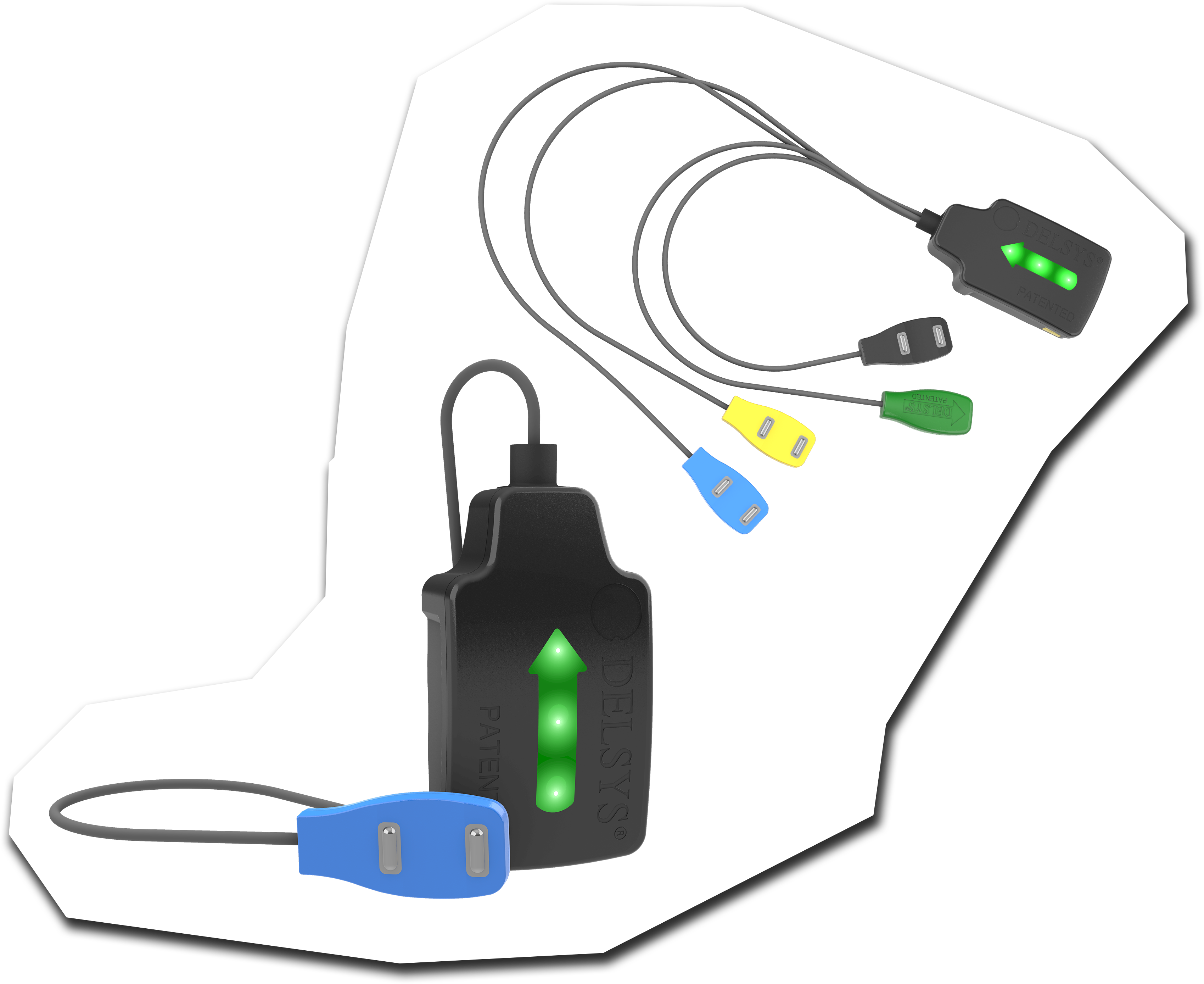

Delsys Trigno Sensors

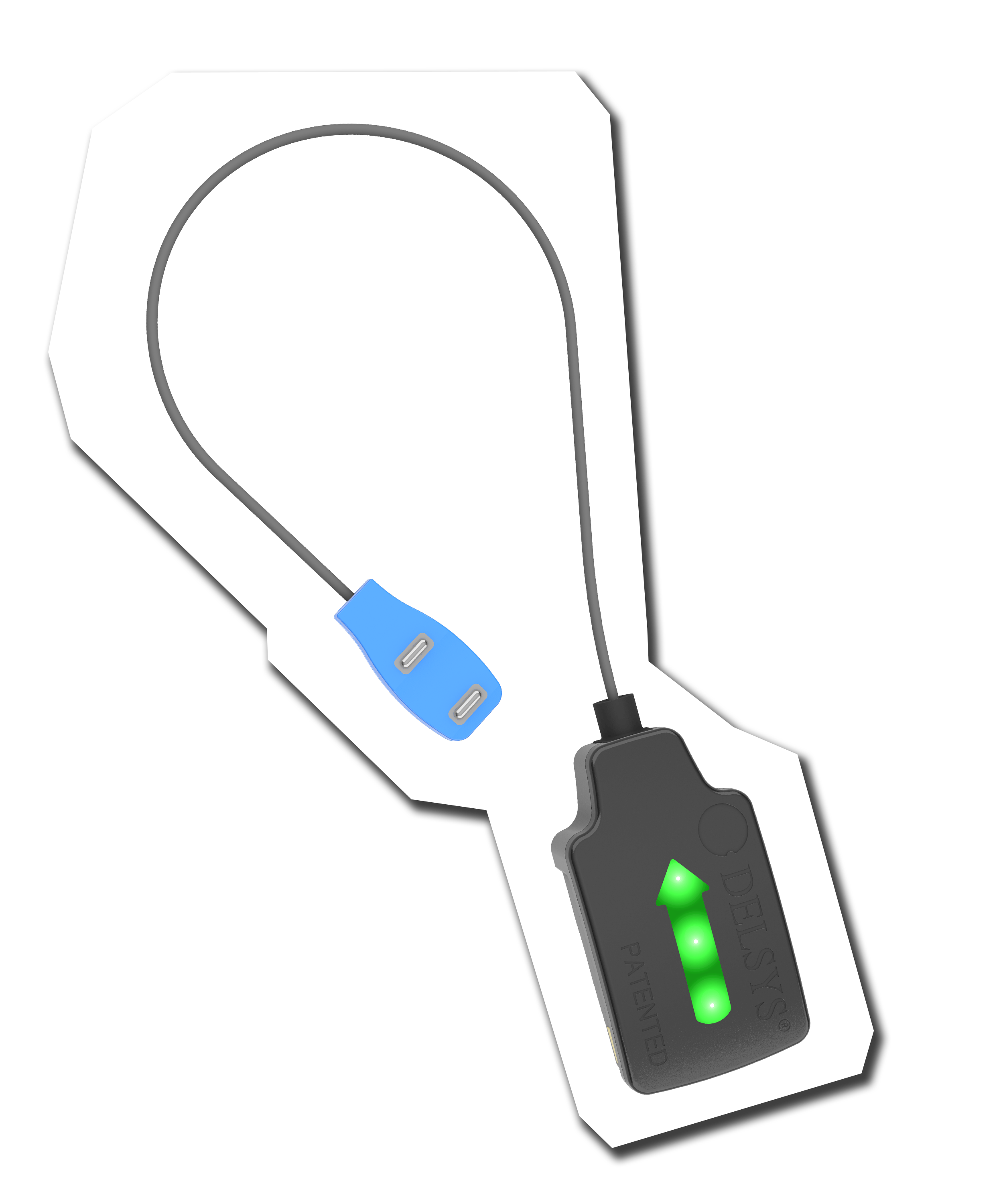

The Trigno Mini features Delsys’ smallest EMG sensing head, enabling accurate recordings from previously hard-to-reach muscles while minimising motion artefacts.

Key Features:

• Full-bandwidth EMG signal capture

• Integrated triaxial accelerometer for movement tracking

• Reduced motion artefacts and crosstalk from surrounding muscles

• Compact, low-profile form factor ideal for fine motor or facial EMG studies

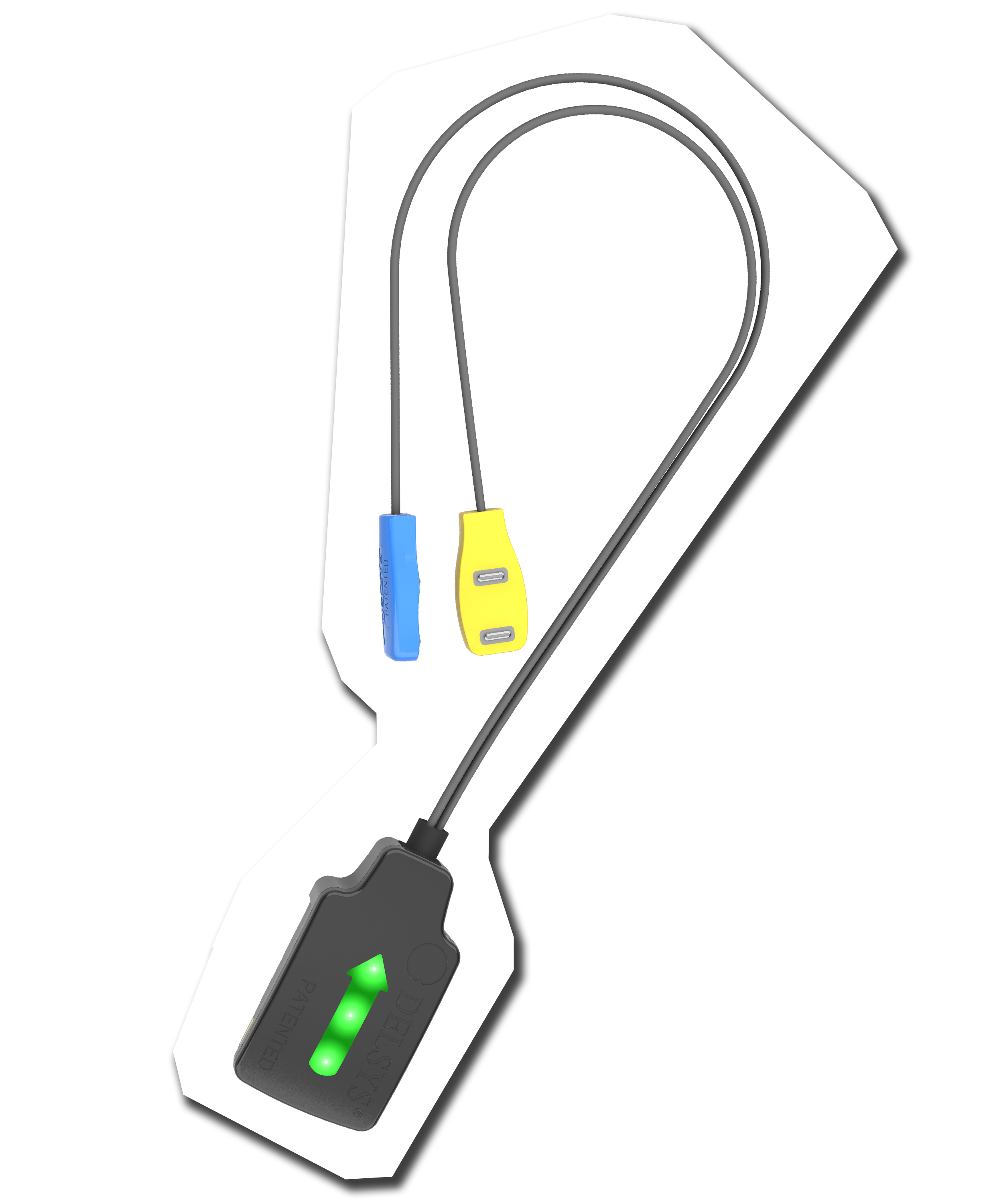

The Trigno Duo provides simultaneous EMG+IMU recordings from two muscle sites, ideal for studying paired or synergistic muscle activation.

Key Features:

• Two small EMG heads for bilateral or dual-muscle recordings

• Integrated IMU for precise motion capture

• 2.4 GHz wireless transmission with up to 40 m range

• Compact, ergonomic design for flexible muscle mapping

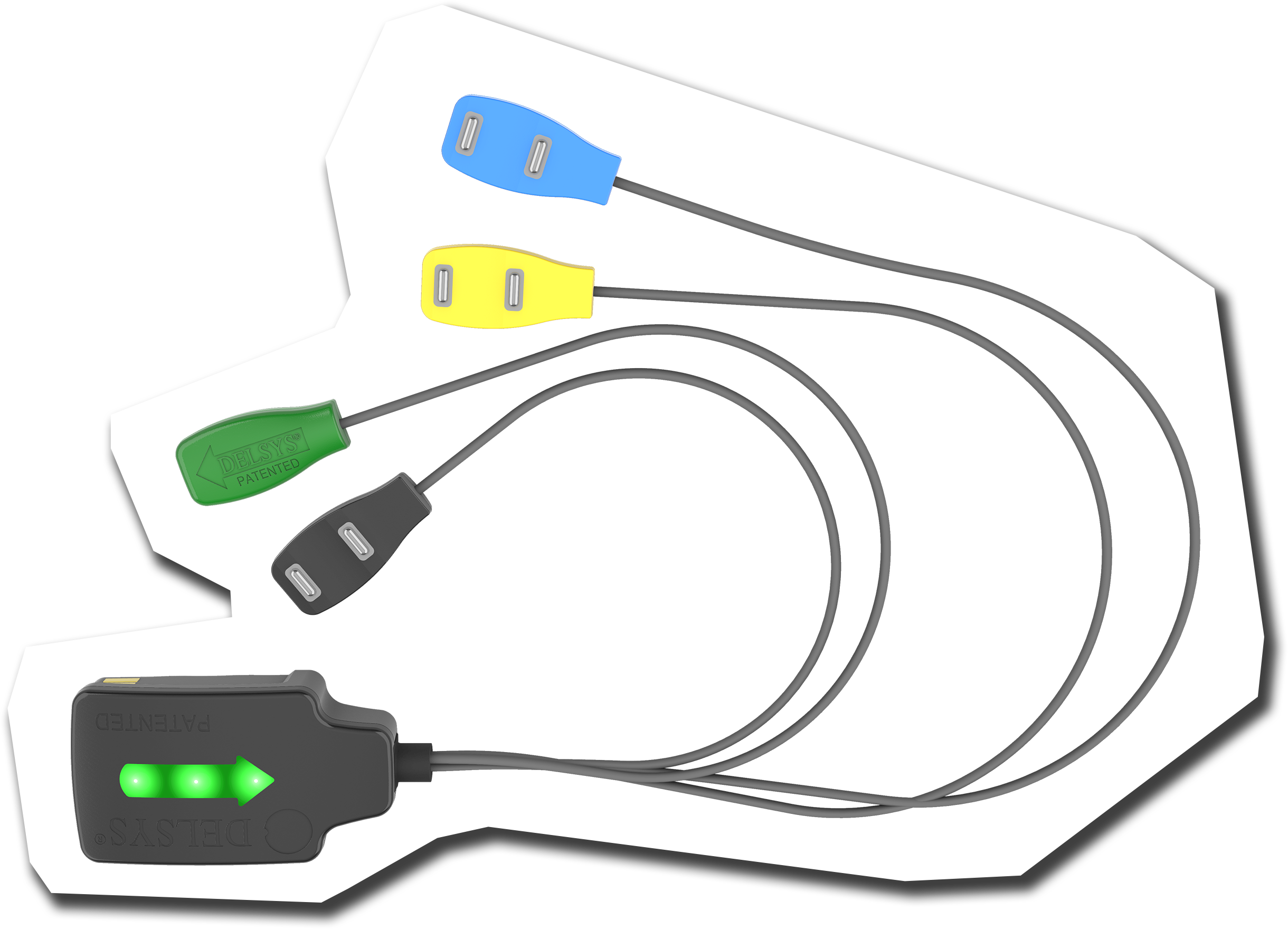

The Trigno Quattro is a compact multi-muscle solution, combining four miniature EMG heads with an integrated IMU for synchronised motion tracking.

Key Features:

• Four small EMG heads for dense spatial coverage

• Wi-Fi and Bluetooth connectivity for flexible setups

• Up to 40 m wireless range

• Adjustable placement for custom muscle mapping configurations

Ideal for advanced multi-muscle synergy, motor control, and rehabilitation research.

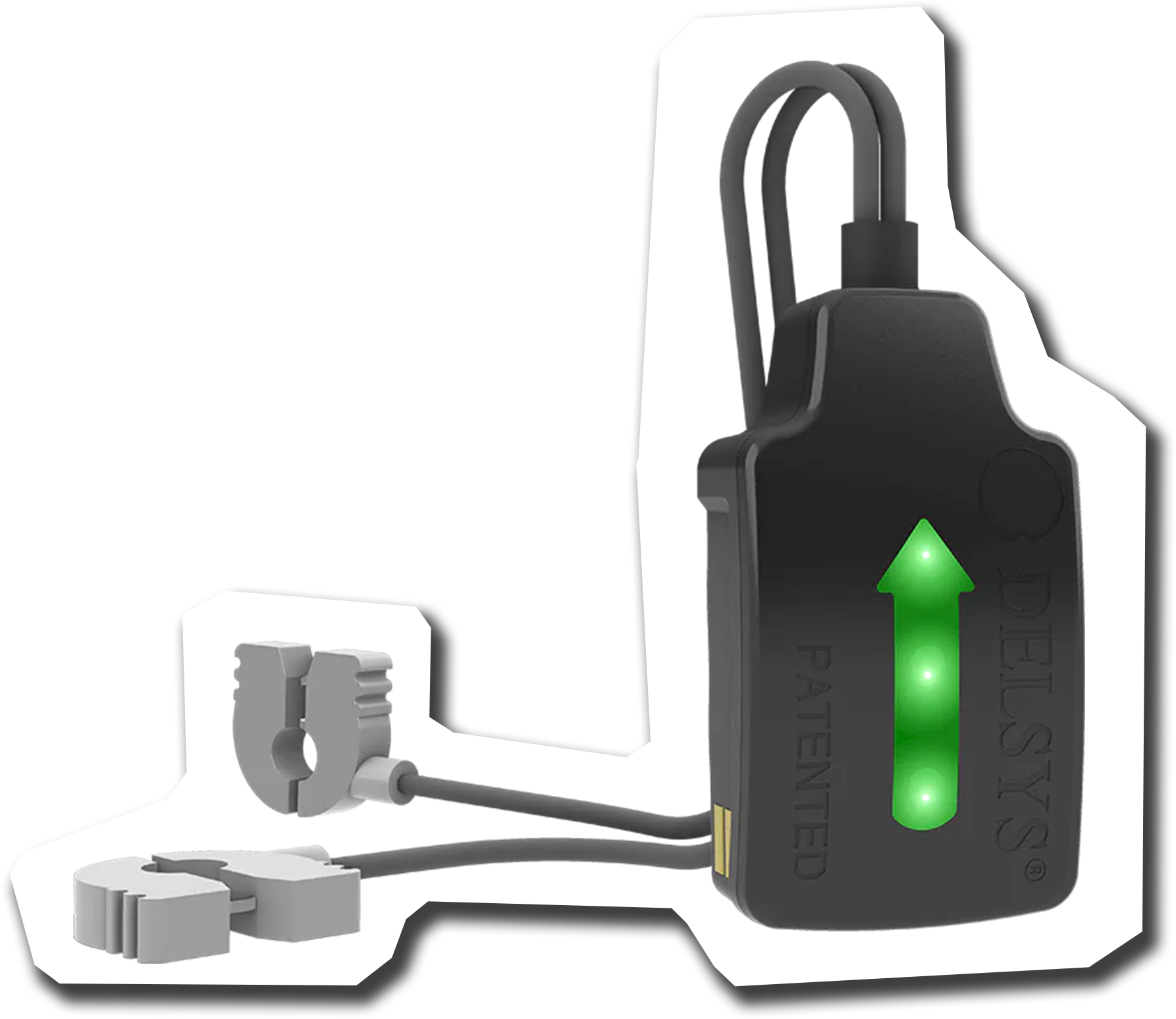

The Trigno Snap Lead offers complete flexibility for custom electrode placement, connecting to standard pinch electrodes and accommodating difficult or variable muscle sites.

Key Features:

• Full EMG bandwidth for detailed signal fidelity

• Built-in accelerometer for motion data integration

• Robust wireless transmission for stable recordings

• Compatible with standard snap electrodes for configurable inter-electrode spacing

The Snap Lead is particularly well-suited for clinical, rehabilitation, and specialised EMG applications.

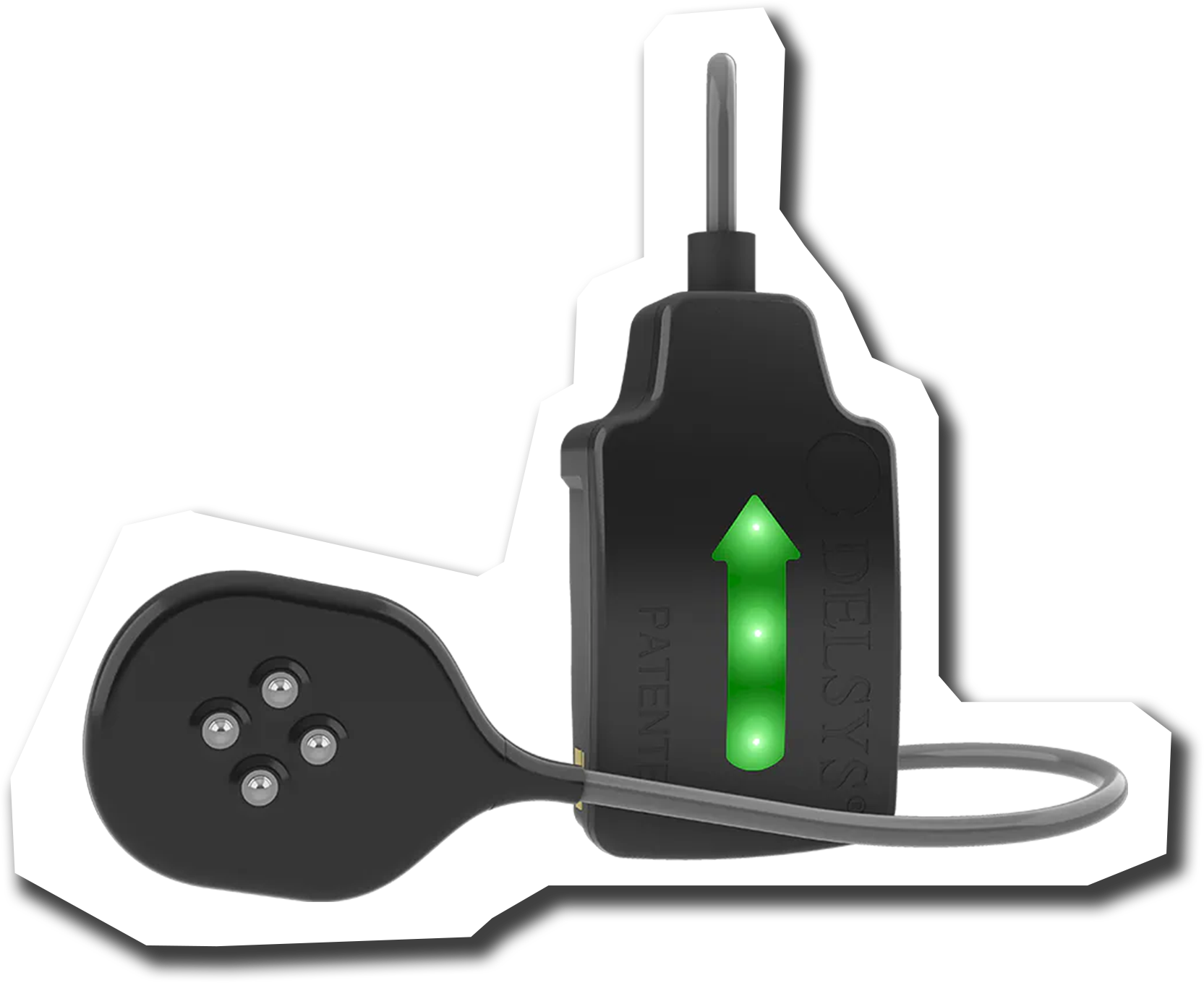

The Trigno Galileo Sensor delivers next-generation high-density surface EMG (HDsEMG) capability in a compact, wireless design. Built on Delsys’ advanced, noise-free transmission technology, it enables seamless acquisition of high-quality EMG signals for detailed motor unit decomposition and neural analysis.

 Designed for effortless integration with the Trigno Centro system, the Galileo provides researchers with unparalleled access to motor unit firing patterns, offering new insights into neuromuscular control, coordination, and fatigue.

Key Features

• Non-invasive HDsEMG sensor for precise motor unit data

• Automatic motor unit extraction for fast, reproducible results

• High signal fidelity via Delsys’ proprietary wireless protocol

• Lightweight, unobtrusive design for natural movement studies

• Compatible with NeuroMap software for visualisation of dynamic motor control

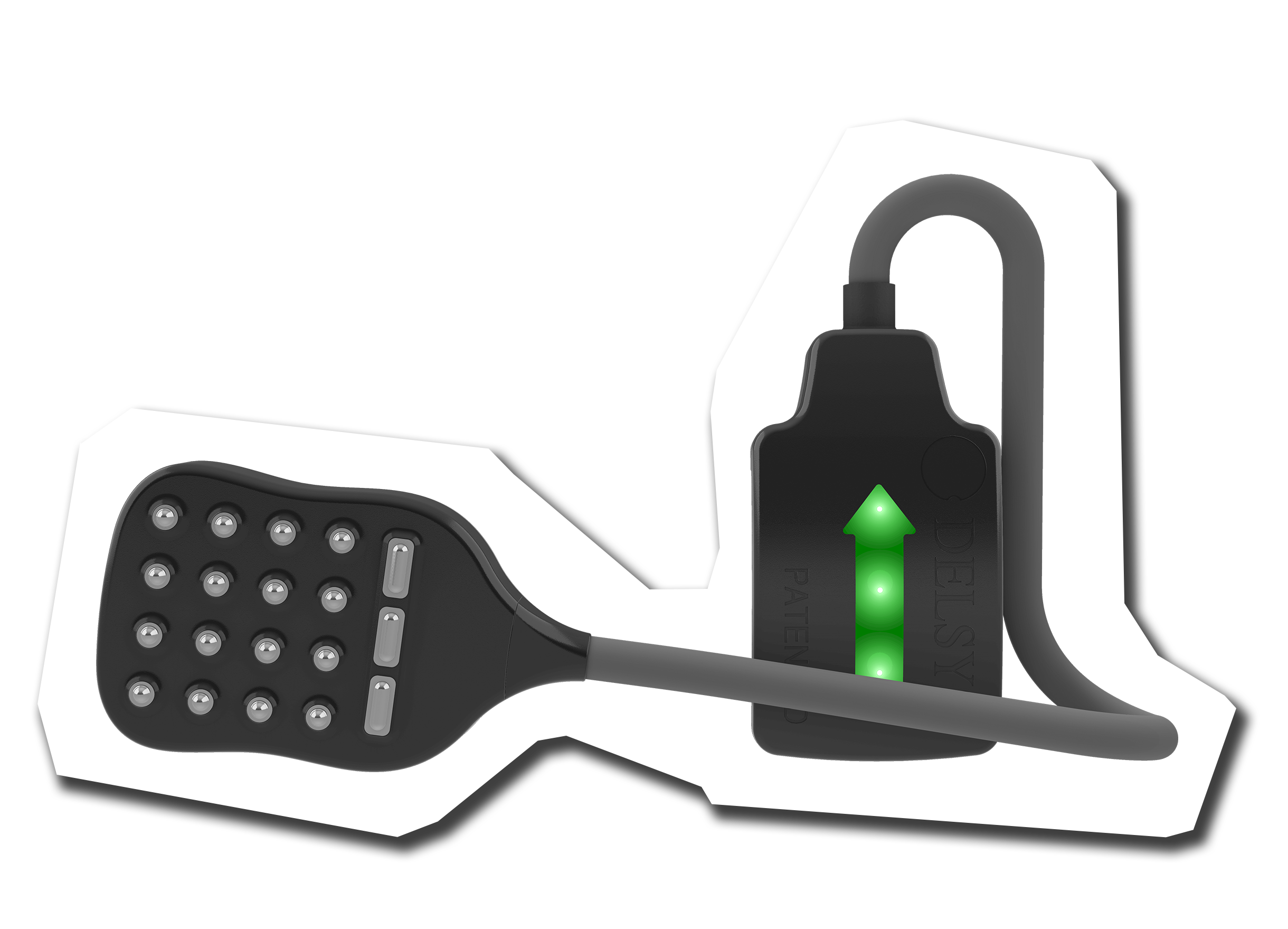

The Trigno Maize Sensor represents the next generation of high-density surface EMG (HDsEMG) technology, enabling detailed spatial mapping of muscle activation during movement. Fully compatible with the Trigno Centro System, this 16-channel HDsEMG sensor delivers real-time, multi-point EMG recordings for advanced studies in biomechanics, neurophysiology, and movement science.

 With patented active EMG electrodes and optimised high spatial resolution, Trigno Maize simplifies the acquisition of rich, high-fidelity data allowing researchers to visualise muscle activation patterns and regional dynamics with exceptional clarity.

 Key Features

• 16-channel HDsEMG sensor for high-resolution spatial mapping

• Patented active EMG electrode technology for superior signal quality

• Reusable, high-density array optimised for dynamic movement studies

• Automatic muscle activity mapping for intuitive visualisation and analysis

• Fully compatible with Trigno Centro and Trigno Discover software
