The neuroConn LOOP-IT device has been specifically designed to enable and support closed-loop scientific experiments. The system provides minimised constant delay between data acquisition, analysis, event detection, and derived parameters for the output module.

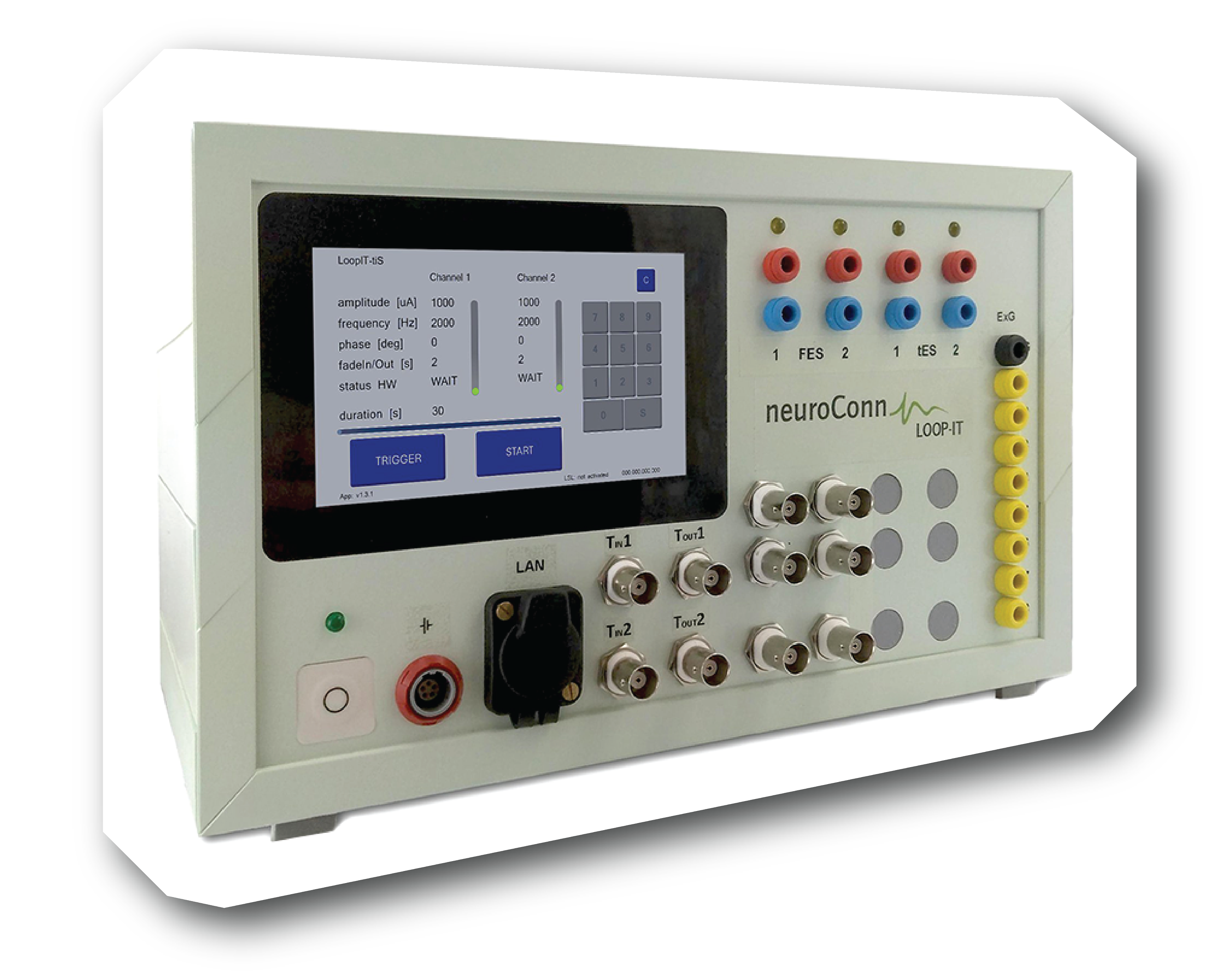

neuroConn LOOP-IT
The neuroConn LOOP-IT device features a hardware platform perfect for scientific closed-loop experiments. The device provides a minimised constant delay between data acquisition, event detection, analysis and derived parameters for the output module (for example: current source).
Electrically Independent Modules
The closed-loop device supports a number of state-of-the-art features, including supporting a combination of electrically independent modules with different functionalities such as EEG/ECG/EMG biosignal acquisition (up to 16 ksps), tDCS / tACS / tRNS current sources (low noise, > 10mAPP, >2 kHz bandwidth), multichannel digital I/O (for tES and TMS), interface for active electrodes, sensor interface for non-electrical bio signals (e.g. pressure, breathing, blood flow, temperature), and evoked potential and display interface (e.g. for feedback applications).
REAL-TIME data Processing Platform
The LOOP-IT closed-loop device platform is based on real-time data processing with all modules running synchronised, simultaneous read/write access to all modules, and jitter-free data transcribing, as well as a loop delay that can be set down to 100 μs.
Expand all
Collapse all
MODULAR DESIGN
The LOOP-IT's modular design enables the system to be used with endless combinations of electrically isolated analogue and digital I/O modules.
SUPER-FAST PROCESSING
LOOP-IT provides real-time algorithms for closed-loop NIBS-EEG research. This means that it is capable of super-fast processing within 1 ms, with no forward prediction (extrapolation) necessary.
LOW-COST SOLUTION
The neuroConn LOOP-IT is a low-cost, all-in-one platform for closed loop NIBS-EEG.
|
Stimulation - tES
|
|
|
Number of channels
|
2 pairs (2 anode, 2 cathode)
|
|
Stimulation modes
|
TIF or tDCS, tACS, tRNS
|
|
Stimulation current
|
8mApp
|
|
Bandwidth
|
5kHz
|
|
|
|
|
Recording - EXG
|
|
|
Number of channels
|
8 (EEG, EMG, ECG)
|
|
Sampling rate
|
1kHz, 24 bit
|
|
Adjustable dynamic range
|
±2.5V … ±104mV
|
|
|
|
|
Interface types
|
USB, TCP/IP, RS232, TTL
|
|
Number of channels (TTL)
|
4 input / output
|
