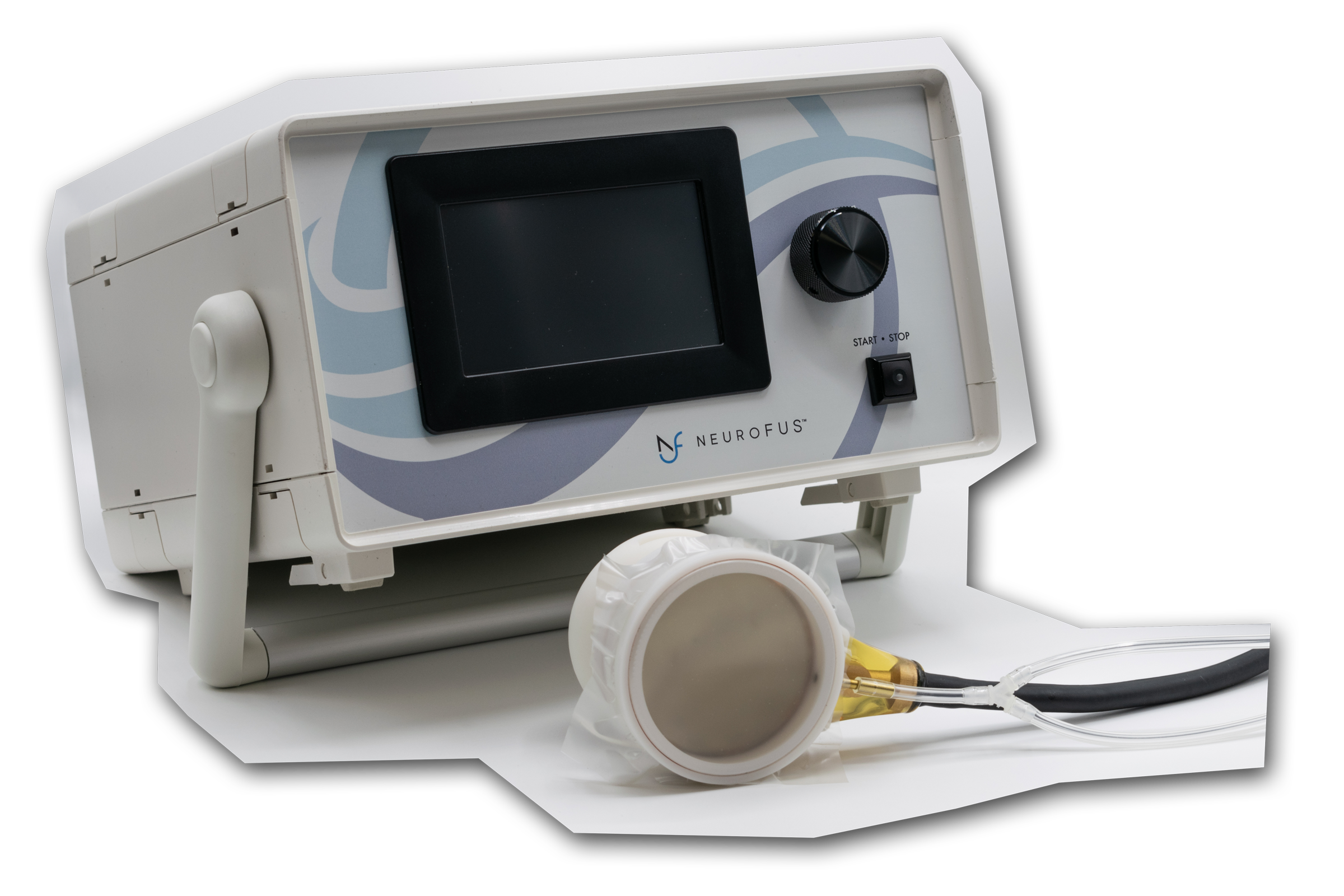

The NeuroFUS PRO is a complete, laboratory-ready system that can be used to administer low-intensity, pulsed transcranial ultrasound stimulation (TUS/tFUS/FUS), offering precision, flexibility, and safety in neuromodulation. Designed for research applications, the NeuroFUS system delivers a low-intensity focused ultrasound wave to targeted brain regions, enabling temporary alterations in brain activity. Unlike other non-invasive brain stimulation techniques such as TMS, NeuroFUS provides higher spatial resolution and depth, enhancing research capabilities in non-invasive brain stimulation.
NeuroFUS PRO
Steerability: Advanced Focal Steering for Precise Targeting
The NeuroFUS system leverages a multi-channel, multi-element design that allows axial steering, enabling unparalleled precision in targeting specific brain regions. Using annular array transducers, the NeuroFUS system allows for focal steering between 25mm and 125mm, providing flexibility in delivering ultrasound waves. By controlling the phase angle and power to each transducer, users can adjust the focus and intensity with high accuracy, ensuring precise neuromodulation.
Turnkey Solution: Seamless Integration

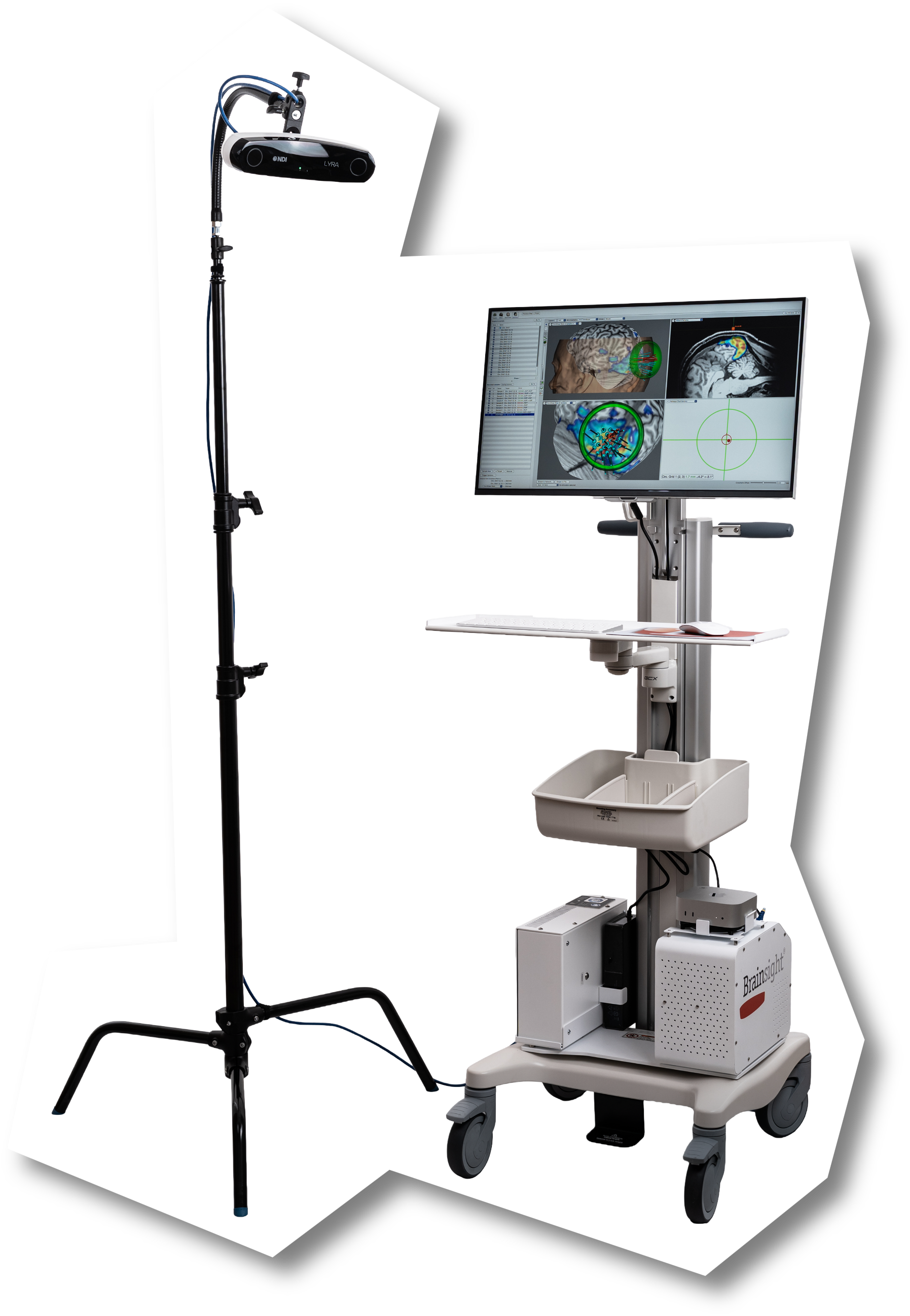

The NeuroFUS system is a turnkey solution that integrates seamlessly with neuronavigation systems such as Brainsight Neuronavigation, allowing for real-time visualisation of ultrasound targeting. The intuitive graphical user interface (GUI) ensures smooth and precise control over the system, while the integration with ultrasound planning tools such as K-Plan simplifies the planning and execution of complex stimulation protocols. This makes the NeuroFUS ideal for research settings where accuracy and continuity are paramount.
Built-In Power Monitoring and Safety Features
The NeuroFUS system is equipped with built-in power monitoring capabilities. The system directly measures electrical output power in watts, ensuring accurate delivery of ultrasound. As well as featuring an automatic shutdown mechanism to prevent sonication in the air, further enhancing user and patient safety.
For continuous quality assurance, the NeuroFUS Tracer provides a mechanism to verify the transducer's output. Utilising a hydrophone, this allows users to check the calibration and ensure that the transducer delivers the correct parameters. Overtime, this allows users to maintain peak performance and accurate results by monitoring the output in comparison to its previous calibration.
Compatibility and Modality Integration
MRI-Compatible Package

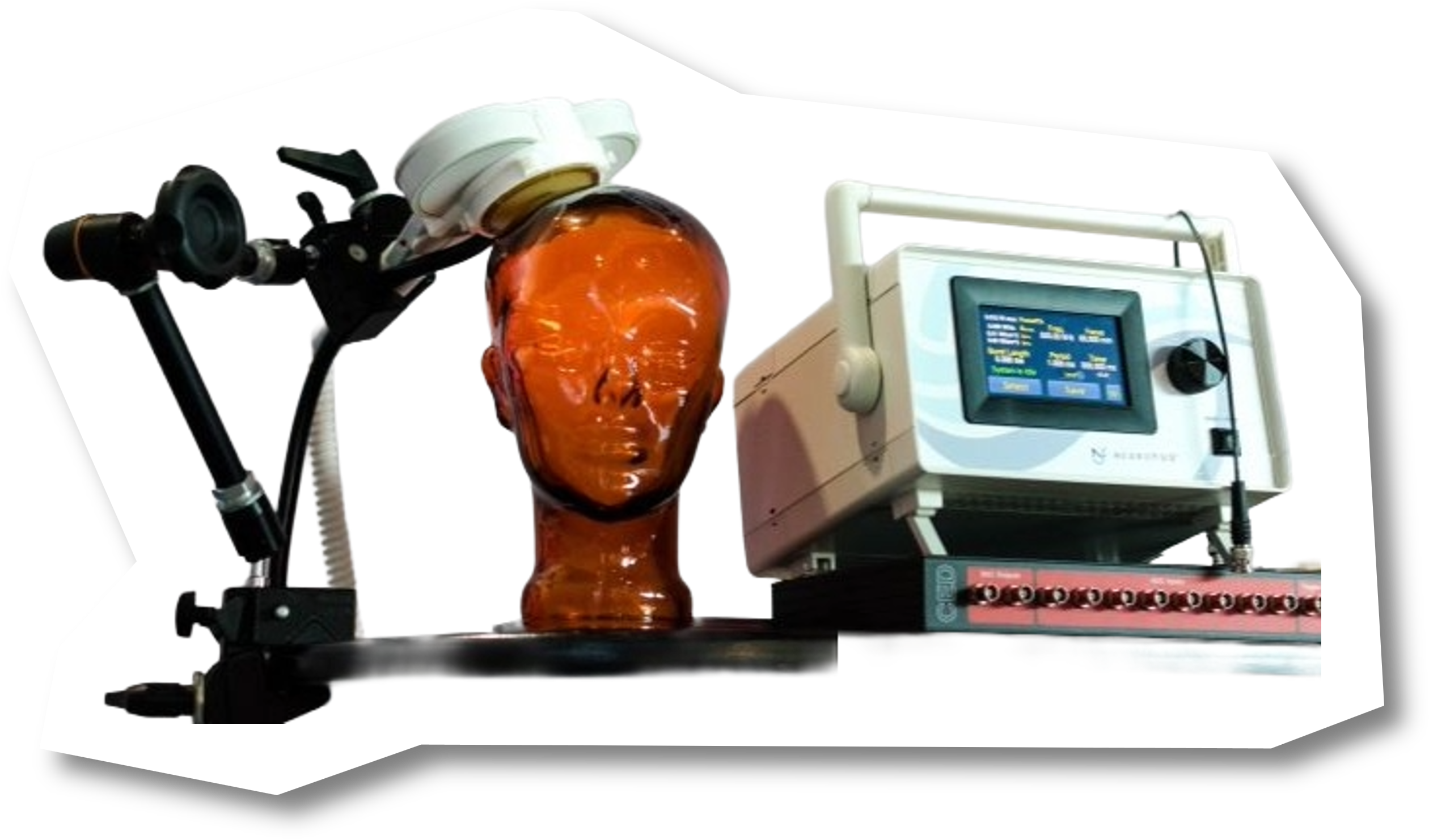

The NeuroFUS system is designed to work within the challenging environment of an MRI suite, where high RF fields and impedance issues are common. By using an innovative transducer matching network and specialised cables, the NeuroFUS can operate within the MRI environment without sacrificing performance. The system offers compatibility with TMS, EEG, and NIRS modalities, providing the ability to integrate neuroimaging and brain stimulation techniques seamlessly.
Multi-Planar Targeting
Thanks to the dual-transducer design, the NeuroFUS allows for multi-planar targeting. Using two 4-channel transducers, users can perform crossbeam targeting, focusing ultrasound on small, specific areas of the brain, enhancing the precision of stimulation.
Control and Customisation
The NeuroFUS system includes multiple control options, allowing researchers the flexibility to customise and program the device according to their specific needs. With a graphical user interface (GUI) and multiple triggering options available, including three trigger modes (standard and two high-speed), users can synchronise the NeuroFUS with other systems such as MRI for precise stimulation timing.
Graphical User Interface
The NeuroFUS PRO comes standard with an intuitive acquisition interface with multiple control and protocol features included, consisting of:
- Published Protocol Database - Over 100 pre-loaded protocols from published studies. Easy to reproduce and replicate previous studies made on the NeuroFUS Pro.
- Standardised Reporting - After creating a protocol, create an auto populated report in line with the ITRUSST Consensus on Standardised Reporting for Transcranial Ultrasound Stimulation 1016/j.brs.2024.04.013
- History View - Reload previously run protocols, create reports from previous protocols, view power data history.
- Real time power Monitoring – Ability to monitor the power of each channel as the protocol is running.

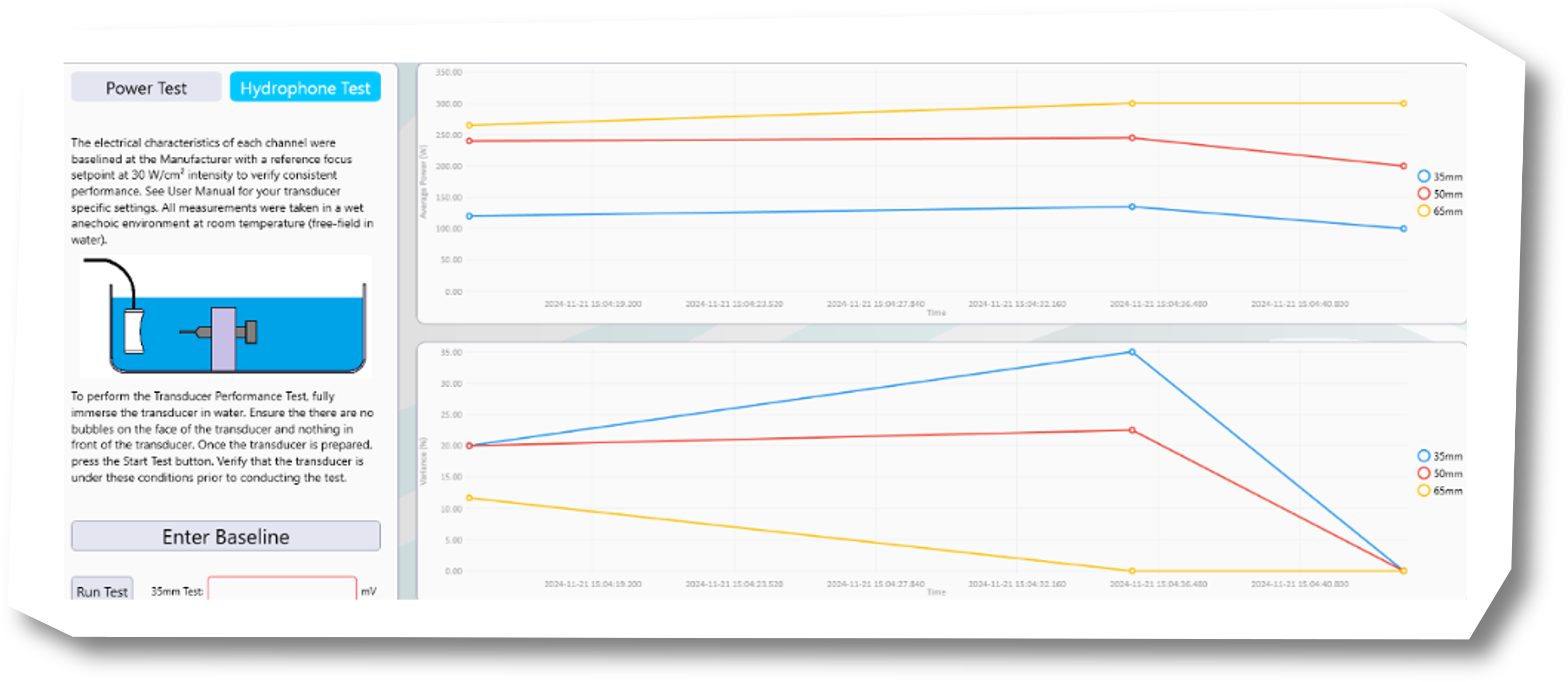

- Transducer Performance Test – Intuitive transducer test, reporting the constitution of the transducer over time, allowing the user to predict when a transducer needs recalibration.
- Integration with k-Plan - Load protocols relating to a k-Plan simulation.
Multiple Transducer Options

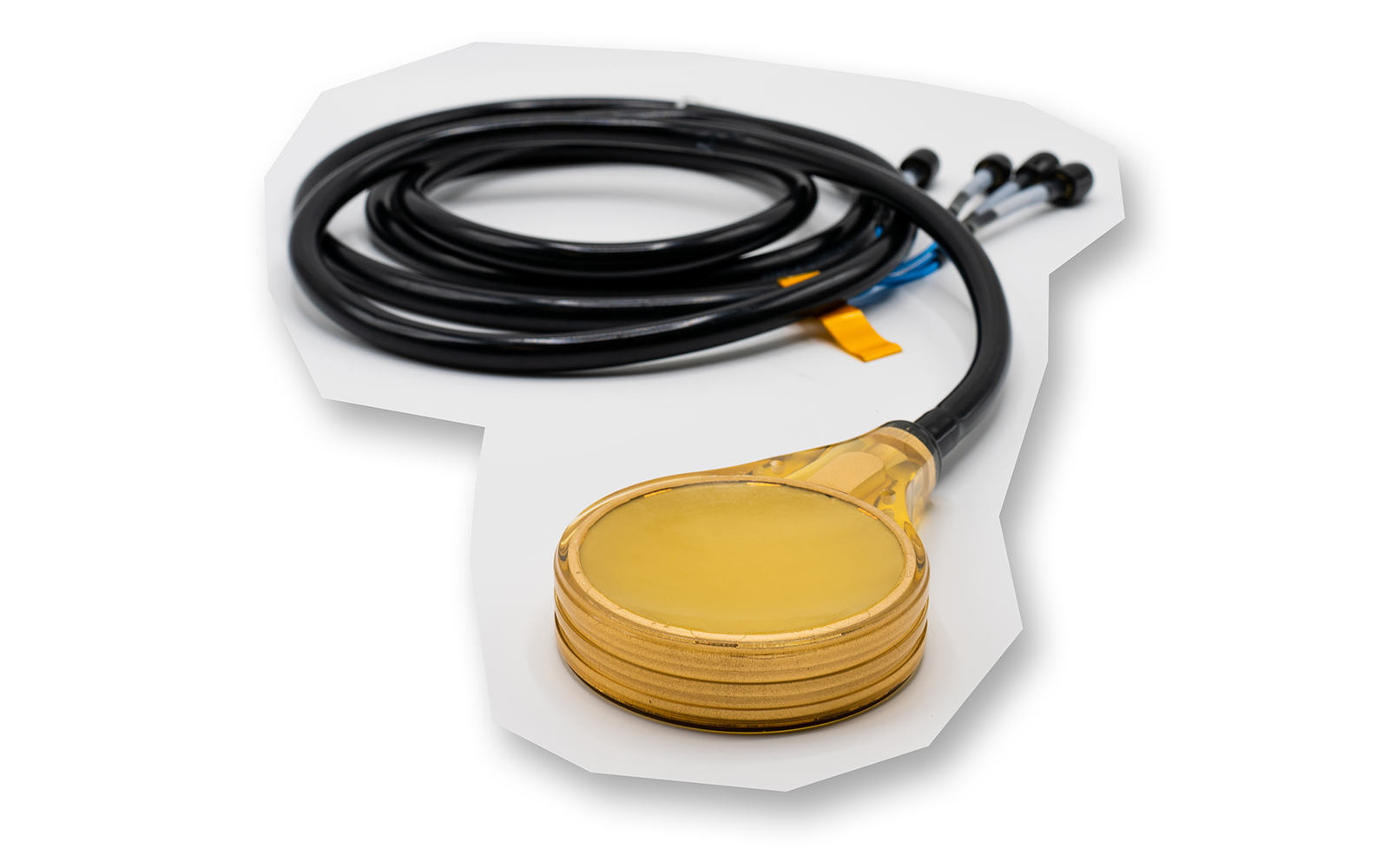

The NeuroFUS system offers versatile transducer options and advanced capabilities. With options like the CTX 250 and CTX 500 (both 2-channel) and the DPX 500 (4-channel), the system provides flexibility across various research needs. The DPX 500 transducer delivers higher frequency stimulation with focal depths from 55mm to 125mm, optimised for targeting deeper brain regions. Lower frequency options, such as the 250 kHz transducer, achieve higher skull penetration, making them ideal for high-intensity applications or large-animal studies. With a frequency range from 250 kHz to 1000 kHz and an axial steering range of 25-125mm, the NeuroFUS balances depth and spatial resolution, with higher frequencies offering precise targeting with reduced skull penetration, while lower frequencies cover larger areas more effectively. The table below compares the NeuroFUS transducer configurations focal size with their estimated derated focal intensity*.
The NeuroFUS PRO is an all-encompassing solution for advanced transcranial ultrasound stimulation. Its high precision, seamless integration with neuronavigation systems, and robust safety features make it the ideal choice for research applications. With its wide range of customisation options and compatibility with other neuromodulation technologies, NeuroFUS pro sets the standard for transcranial ultrasound stimulation.
Expand all
Collapse all
Axial Steering
With a multi-element design that allows axial steering, the NeuroFUS PRO enables unparalleled precision in targeting specific brain regions. The system allows for focal steering between 25mm and 125mm by using an annual array, providing flexibility in delivering ultrasound waves.
Compatability
The NeuroFUS PRO system offers complete compatibility with TMS, EEG, and NIRS modalities, as well as an option for MR compatibility, providing integration with neuroimaging and brain stimulation techniques seamlessly.
Power Monitoring & Logging
The system directly measures electrical output, ensuring accurate delivery of ultrasound. As well as featuring an automatic shutdown mechanism to prevent sonication in the air, further enhancing user and patient safety.
Seemless Integrations
The NeuroFUS PRO turnkey solution integrates seamlessly with neuronavigation systems such as Brainsight Neuronavigation, allowing for real-time visualisation of ultrasound targeting, K-Plan for intuitive and precise ultrasound planning, and includes a feature full, easy to use graphical user interface for complete control of the system.
|
CTX-250-4CH |
CTX-500-4CH |
CTX-1000-4CH |
uTX-2500 |
---|---|---|---|---|
Centre Frequency, MHz |
0.25 |
0.50 |
1.00 |
2.50 |
Peak Power, W |
16.85 |
4.00 |
0.95 |
0.08 |
Total Acoustic Power, W |
14.3 |
3.4 |
0.8 |
0.1 |
Distance to Focus, mm |
40 |
52 |
52 |
13 |
Focal Intensity - free field, W/cm2 |
30 |
30 |
30 |
30 |
Focal Intensity - 2.7dB/cm derated, W/cm2 |
16.1 |
5.9 |
1.2 |
4.0 |
Focal Lateral Width, mm (diameter) |
6.45 |
3.14 |
1.53 |
0.46 |
Focal Axial Length, mm |
43.99 |
23.04 |
11.53 |
2.64 |
Grating Lobe Range, mm |
40 |
40 |
40 |
7 |
Penetration Distance Minimum, mm |
20 |
25 |
40 |
9.5 |
Penetration Distance Maximum, mm |
60 |
60 |
60 |
16.5 |
*Human skull average: ncbi.nlm.nih.gov/pubmed/22225300
Note: Listed transducer focal sizes are simulated based on ideal conditions. Actual free field performance may vary and is provided for each transducer.
- Toward focused ultrasound neuromodulation in deep brain stimulator implanted patients: Ex-vivo thermal, kinetic and targeting feasibility assessment. Sarica C, Fomenko A, Nankoo JF, Darmani G, Vetkas A, Yamamoto K, Lozano AM, Chen R.. Brain Stimulation. February 2022
- Systematic examination of low-intensity ultrasound parameters on human motor cortex excitability and behavior. Anton Fomenko Is a corresponding author, Kai-Hsiang Stanley Chen, Jean-François Nankoo, James Saravanamuttu, Yanqiu Wang, Mazen El-Baba, Xue Xia, Shakthi Sanjana Seerala, Kullervo Hynynen. ELife. November 2020
- Neuronavigated Repetitive Transcranial Ultrasound Stimulation Induces Long-Lasting and Reversible Effects on Oculomotor Performance in Non-human Primates. Pierre Pouget, Stephen Frey, Harry Ahnine1, David Attali, Julien Claron, Charlotte Constans, Jean-Francois Aubry and Fabrice Arcizet. Frontiers in Physiology. August 2020
- Remote, brain region–specific control of choice behavior with ultrasonic waves. Jan Kubanek1, Julian Brown, Patrick Ye, Kim Butts Pauly, Tirin Moore and William Newsome. ScienceAdvances. May 2020
- Effect Of Low-intensity Pulsed Ultrasound On Epileptiform Discharges In A Penicillin-induced Epilepsy Model In Non-human Primates. J. Zou, Y. Guo, L. Niu, L. Meng, N. Pang, H. Zheng. Brain Stimulation. March 2019
- Manipulation of Subcortical and Deep Cortical Activity in the Primate Brain Using Transcranial Focused Ultrasound Stimulation. Davide Folloni, Lennart Verhagen, Rogier B Mars, Elsa Fouragnan, Charlotte Constans, Jean-François Aubry, Matthew F S Rushworth, Jérôme Sallet. Neuron. March 2019
- Offline impact of transcranial focused
ultrasound on cortical activation in
primates. Lennart Verhagen [. . .] Jerome Sallet. ELife. February 2019 - Real-time imaging of brain displacement during FUS neuromodulation in rodents in vivo. Tara Kugelman, Mark T. Burgess, Elisa Konofagou. The Journal of the Acoustical Society of America. 2019
- Neuromodulation of sensory networks in monkey brain by focused ultrasound with MRI guidance and detection. Pai-Feng Yang, M. Anthony Phipps, Allen T. Newton, Vandiver Chaplin, John C. Gore,
Charles F. Caskey, & Li Min Chen. Scientific Reports. May 2018 - Transcranial ultrasonic stimulation modulates single-neuron discharge in macaques performing an antisaccade task. Nicolas Wattiez, Charlotte Constans, Thomas Deffieux, Mickael Tanter, Jean-François Aubry, Pierre Pouget. Brain Stimulation. November 2017
- Disentangling transcranial and auditory sources of the transcranial ultrasonic stimulation induced suppression of corticospinal excitability. Tulika Nandi, Umair Hassan, Melissa Null, Angela Radetz, Til Ole Bergmann. Brain Stimulation, VOLUME 16, ISSUE 1, P201. January 2023
- Ramped V1 transcranial ultrasonic stimulation modulates but does not evoke visual evoked potentials. Tulika Nandi, Ainslie Johnstone, Eleanor Martin, Catharina Zich, Robert Cooper, Sven Bestmann, Til Ole Bergmann, Bradley Treeby, Charlotte J. Stagg. Brain Stimulation, VOLUME 16, ISSUE 2, P553-555. March 2023
- Transcranial focused ultrasound-mediated neurochemical and functional connectivity changes in deep cortical regions in humans. Siti N. Yaakub, Tristan A. White, Jamie Roberts, Eleanor Martin, Lennart Verhagen, Charlotte J. Stagg, Stephen Hall & Elsa F. Fouragnan. Nature Communications, 14(1). September 2023
