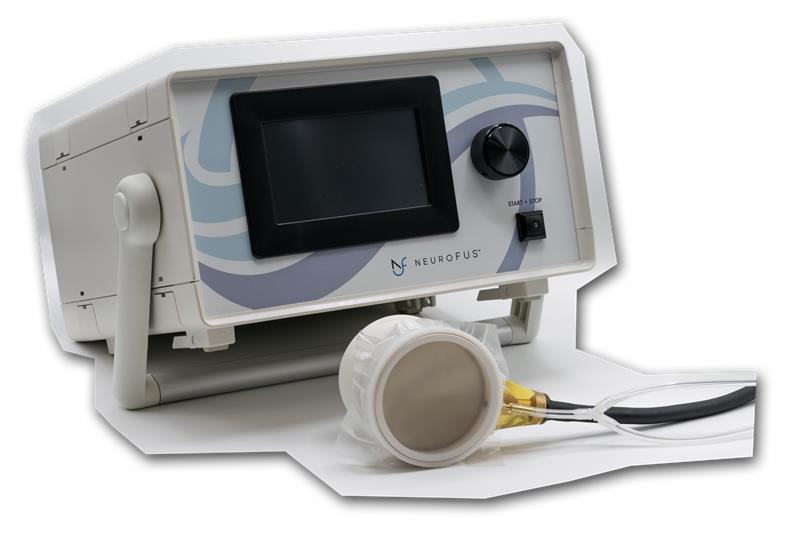

NeuroFUS offers a range of state-of-the-art transducers compatible with your NeuroFUS PRO TUS device. From human to animal applications, shallow to deep stimulation depths, and high to low frequencies, the NeuroFUS is certain to have a transducer that will meet your research needs.

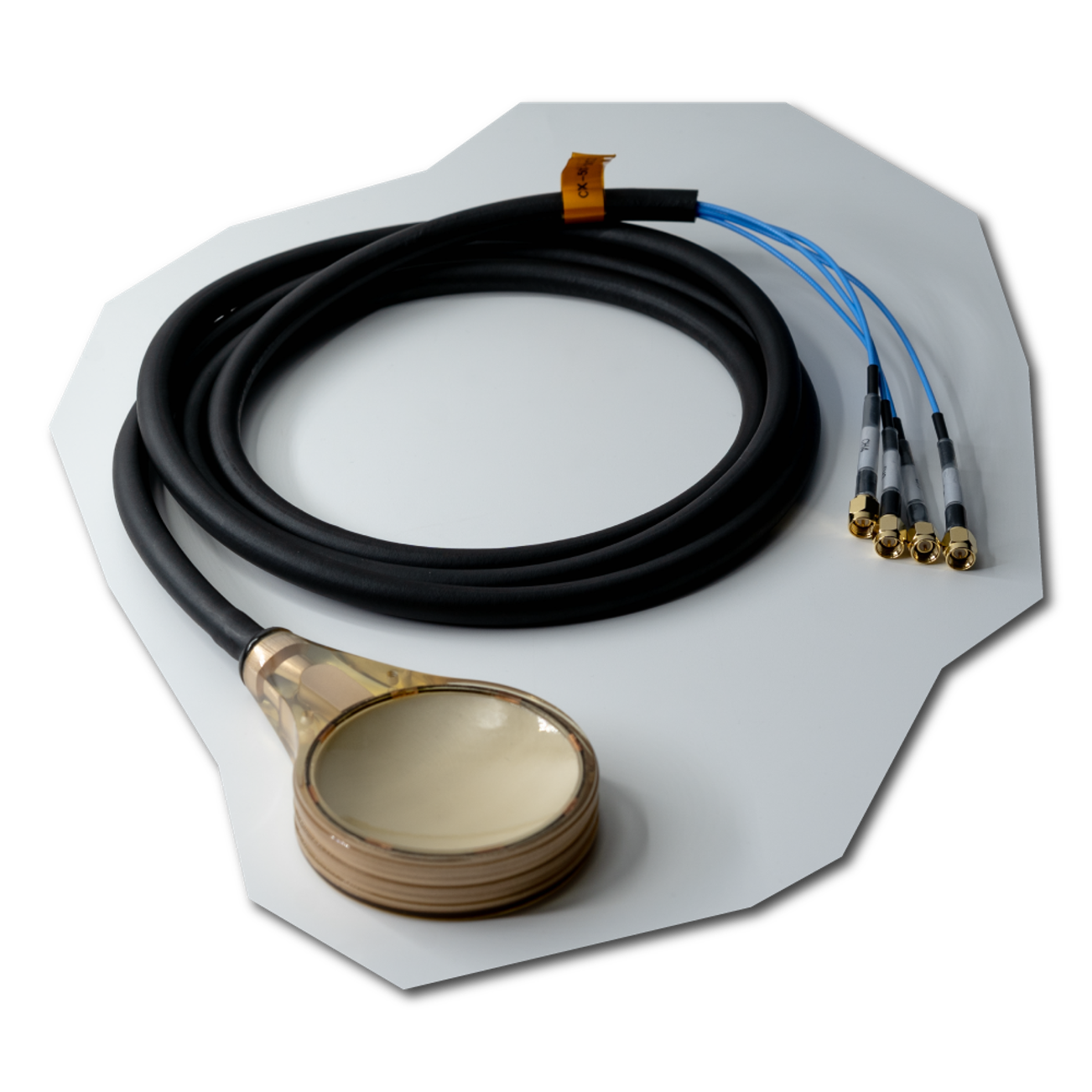

NeuroFUS Transducers
Drive targeted neuromodulation with millimetre-level focal precision and electronic beam steering. Designed for direct lab integration, NeuroFUS transducers configure to your specific spatial target, depth requirement, and subject model.
TRANSDUCER COMPONENTS
- Transducer Versions: Select from three distinct transducer series: CTX for peripheral transcranial stimulation in human and non-human primate models, DPX to reach subcortical structures unattainable with surface methods, and uTX for high-precision rodent and small-animal neuromodulation research.
- Frequency Range: Match acoustic wave profiles (250 kHz, 500 kHz, 1000 kHz, or 2500 kHz) directly to subject skull morphology and depth requirements. Utilise lower frequencies for broad acoustic delivery and higher frequencies to achieve tight, precise focal stimulation.
- Channels: Deploy 2-channel arrays for stable, broad-volume stimulation in baseline protocols, or step up to 4-channel arrays to steer focal depth electronically along the acoustic axis without repositioning the hardware.
DEVICE CAPABILITIES
Flexibility
Calibrate and execute multi-site protocols from a single NeuroFUS TPO unit, scaling your experimental paradigm across variable sample types and spatial targets.
High Spatial Resolution
Combine hardware with k-Plan TUS planning software and Brainsight neuronavigation to model skull attenuation, visualising target placement in subject-specific MRI space, and stimulate brain regions with millimetre precision.
Seamless Transmission
Reduce air-bubble artefacts and skull morphology noise using water bladder coupling (BCT) paired with standard ultrasound gel setups.
Handle with Ease
Effortlessly secure transducers using the NeuroFUS ergonomic snap-on handles, included with all systems. Upgrade provision and comfort with participant-mounted headgear, or the Brainsight NIBS Robot for fully automated position control.
MRI Compatibility
Acquire simultaneous fMRI and TUS data without signal sacrificing performance using specialised non-magnetic matching networks and cabling.
Multi-Planar Targeting
Intersect two 4-channel transducers to perform crossbeam focal overlapping, concentrating acoustic energy on precise subcortical structures while safeguarding surface tissue.
Expand all
Collapse all
CTX-250-4CH

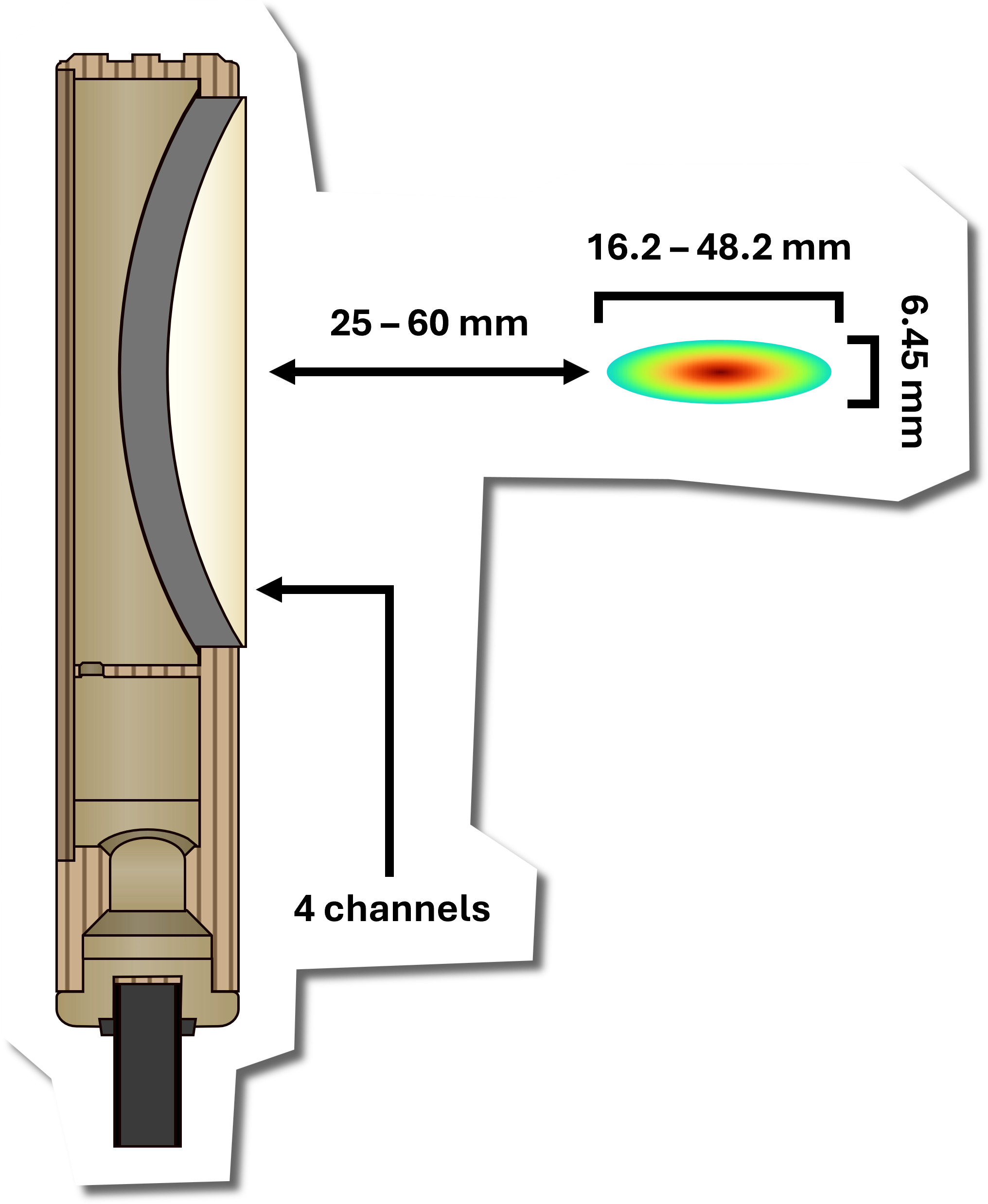

The CTX-250-4CH is a CTX transducer that has 4 channels with a frequency of 250 kHz. This transducer is ideal for human or non-human primate research interested in stimulating larger areas of cortical or near-cortical regions with advanced steering capabilities.
CTX-500-4CH

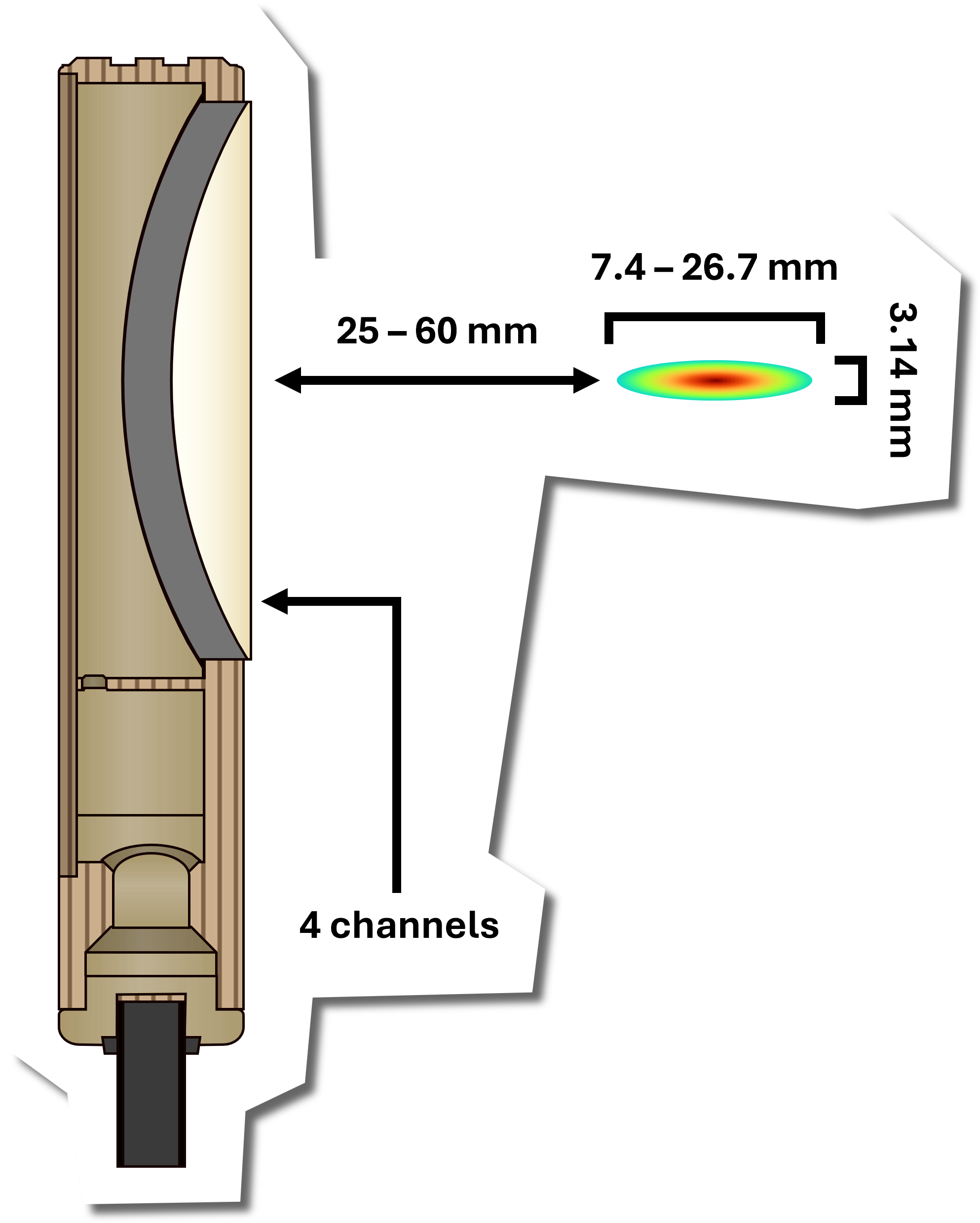

The CTX-500-4CH is a CTX transducer that has 4 channels with a frequency of 500 kHz. This transducer is ideal for human or non-human primate research interested in stimulating cortical or near-cortical regions with moderate precision and advanced steering capabilities.
CTX-1000-4CH

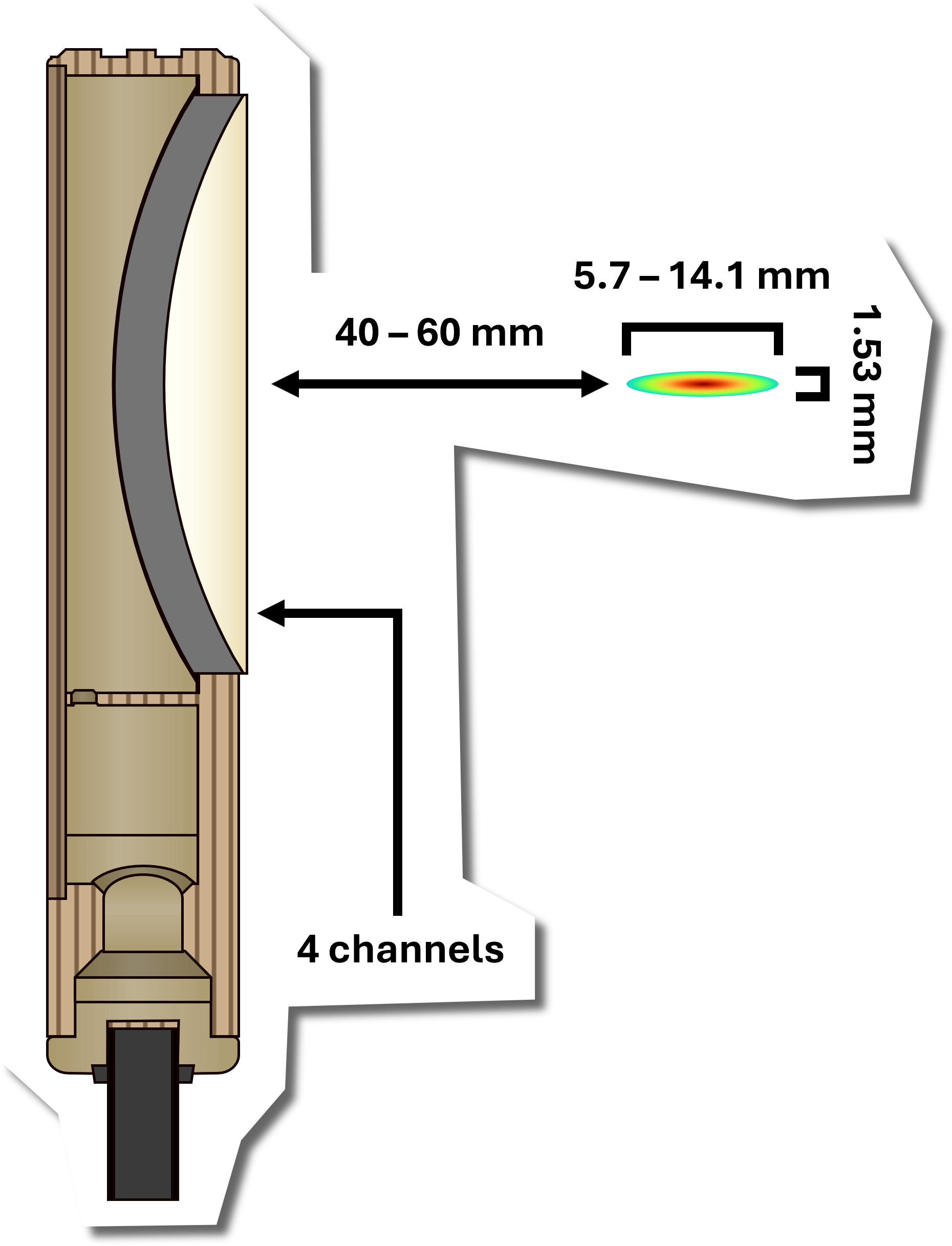

The CTX-1000-4CH is a CTX transducer that has 4 channels with a frequency of 1000 kHz. This transducer is ideal for human or non-human primate research interested in stimulating cortical or near-cortical regions with high focal precision and advanced steering capabilities.
CTX-250-2CH

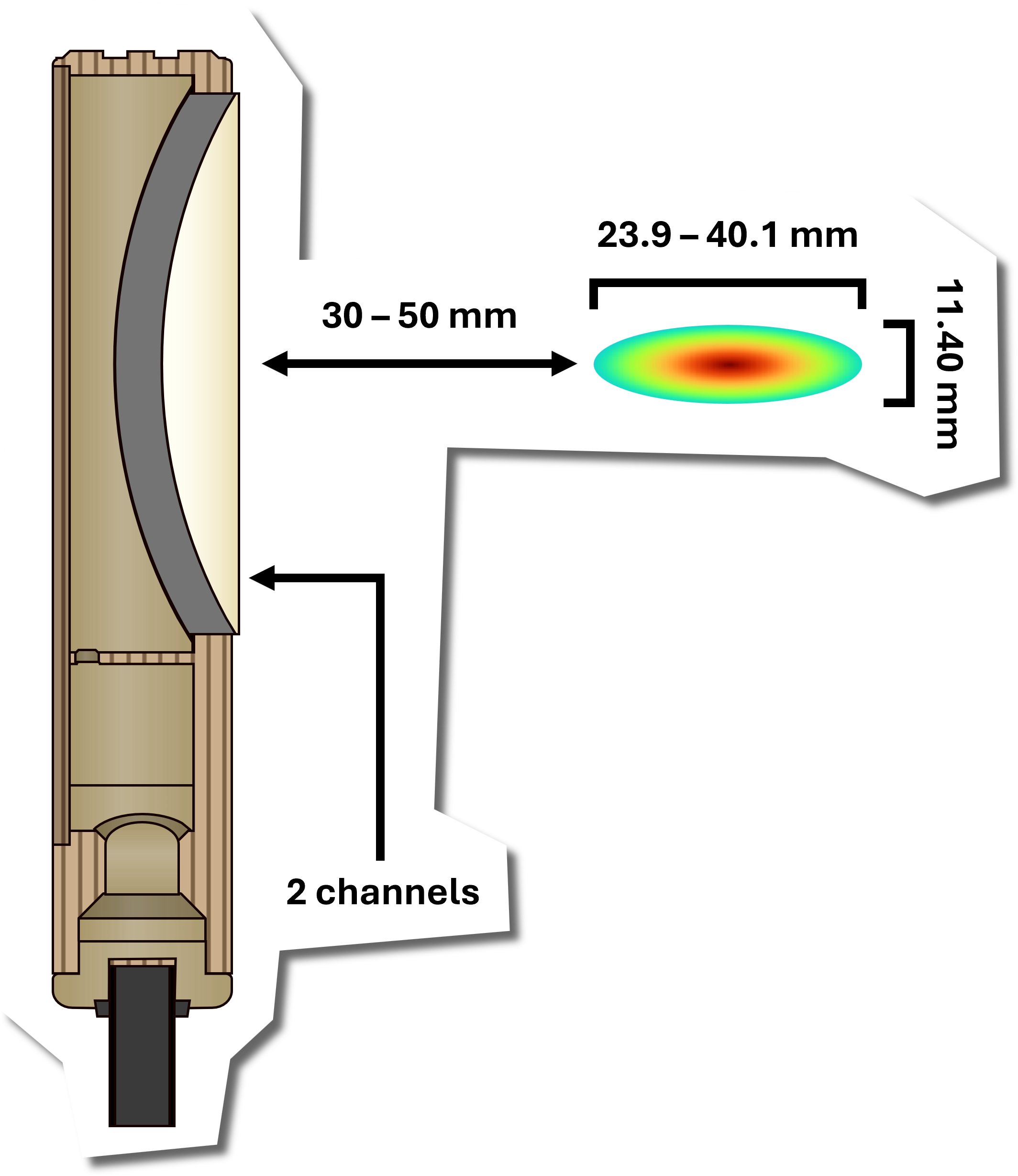

The CTX-250-2CH is a CTX transducer that has 2 channels with a frequency of 250 kHz. This transducer is ideal for human or non-human primate research interested in stimulating larger cortical or near-cortical regions.
CTX-500-2CH

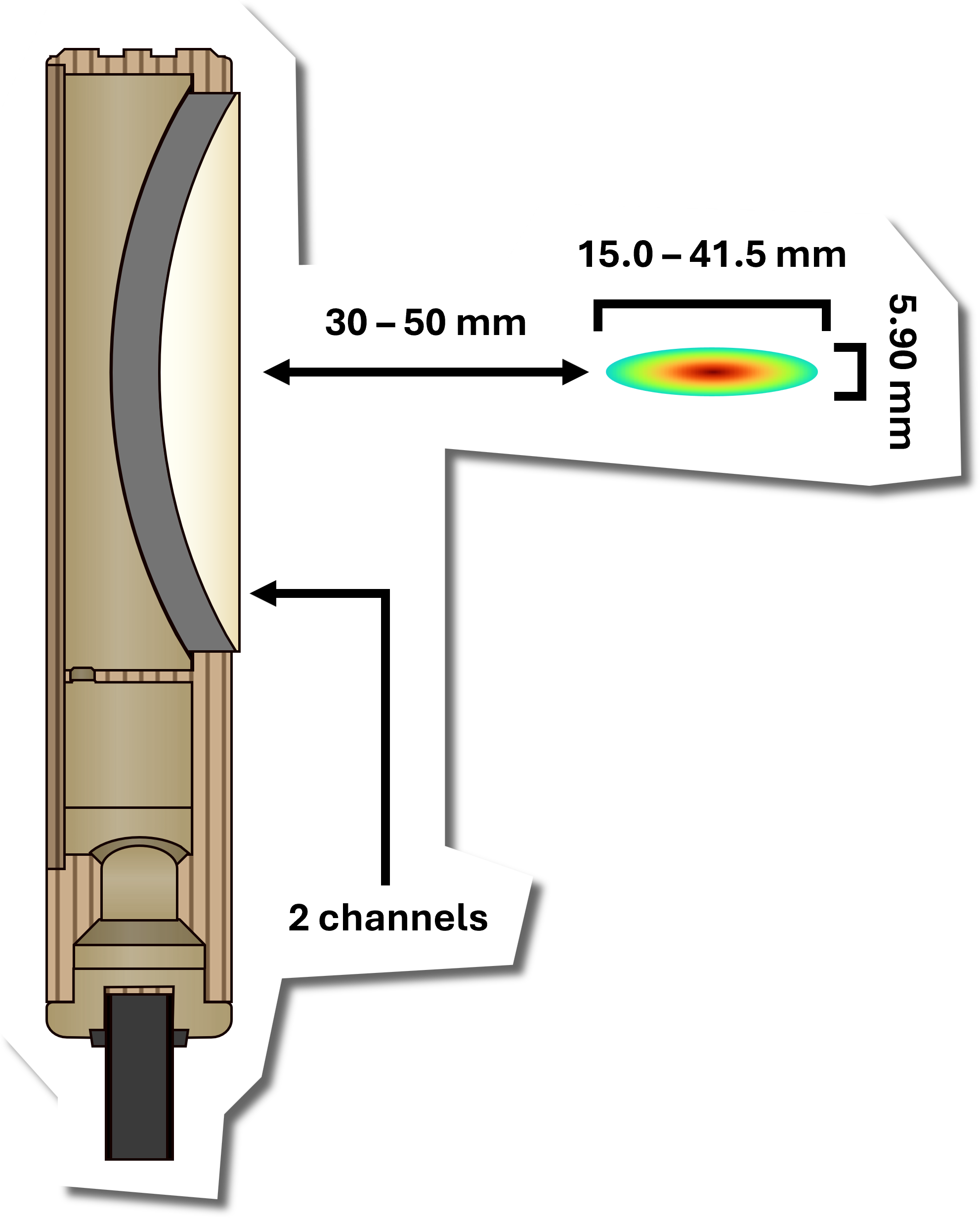

The CTX-500-2CH is a CTX transducer that has 2 channels with a frequency of 500 kHz. This transducer is ideal for human or non-human primate research interested in stimulating cortical or near-cortical regions.
DPX-500-4CH

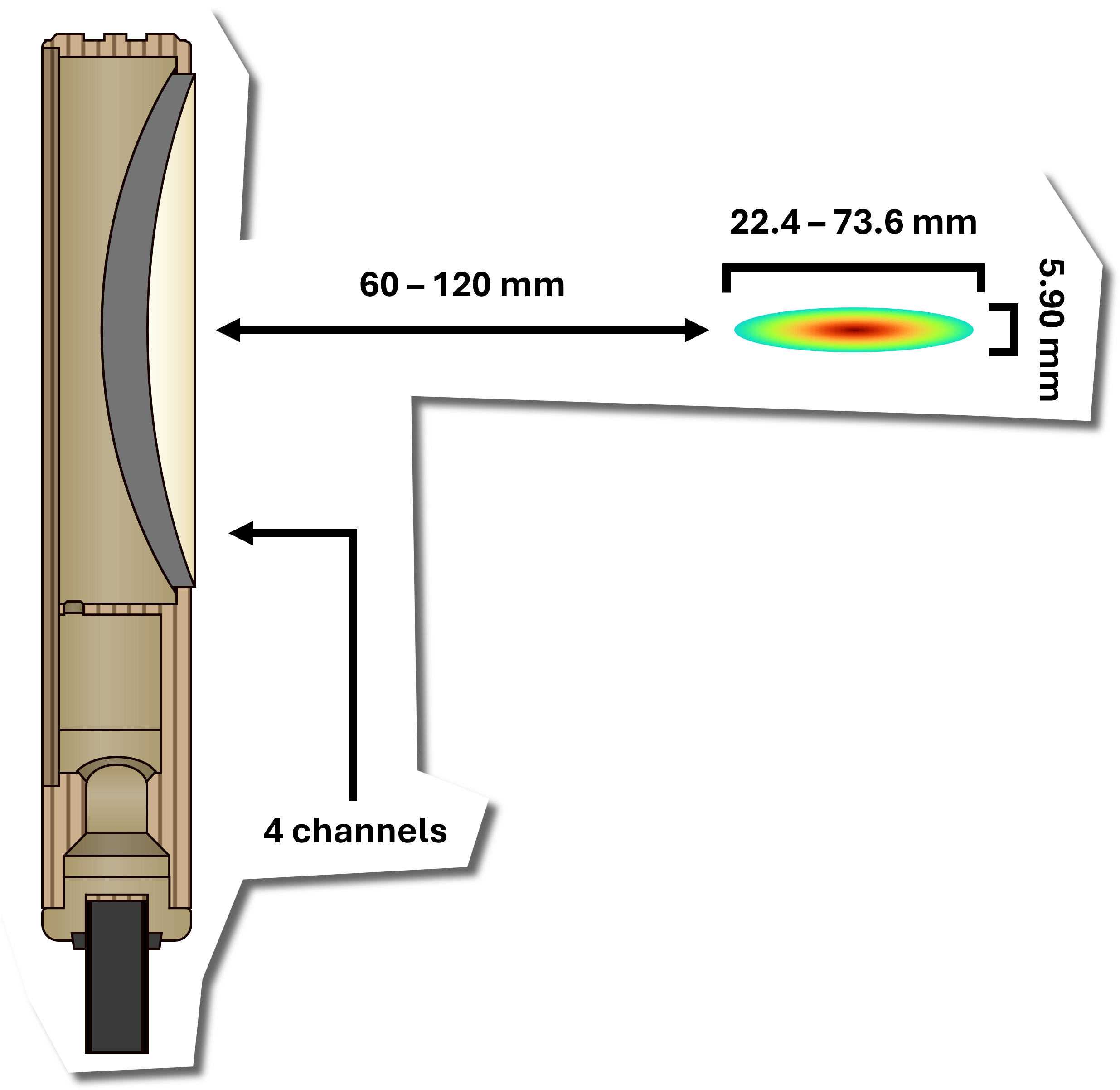

The DPX-500-4CH is a DPX transducer that has 4 channels with a frequency of 500 kHz. This transducer is ideal for human or non-human primate research interested in stimulating deeper, subcortical regions with high focal precision and advanced steering capabilities.
UTX-2500

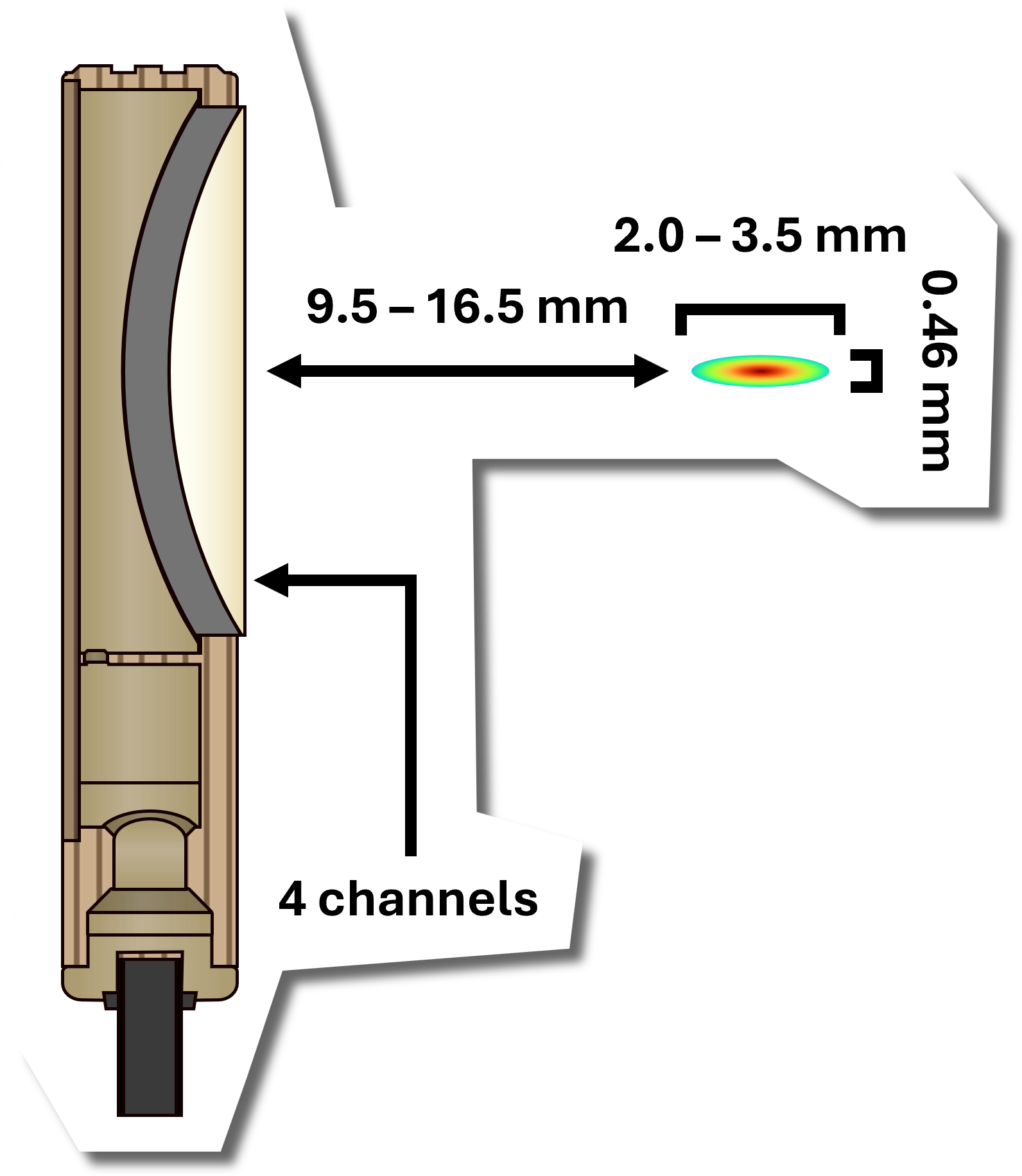

The uTX-2500 is a uTX transducer that has 4 channels with a frequency of 2500 kHz. This transducer is ideal for small animal research that relies on ultra-high focal precision
|
|
CTX-250-4CH |
CTX-500-4CH |
CTX-1000-4CH |
CTX-250-2CH |
CTX-500-2CH |
DPX-500-4CH |
uTX-2500 |
|---|---|---|---|---|---|---|---|
|
Centre Frequency (kHz) |
250 |
500 |
1000 |
250 |
500 |
500 |
2500 |
|
Number of Channels
|
4 |
4 |
4 |
2 |
2 |
4 |
4 |
|
Peak Power (W) |
18.10 |
1.78 |
2.04 |
18.70 |
12.01 |
5.94 |
0.23 |
|
Total Acoustic Power (W) |
14.30 |
3.40 |
0.80 |
1.76 |
1.96 |
1.44 |
0.10 |
|
Distance to Focus (mm) |
52 |
52 |
52 |
57 |
57 |
145 |
13 |
|
Focal Intensity - free field (W/cm2) |
30 |
30 |
30 |
30 |
30 |
30 |
30 |
|
Focal Intensity - 2.7 dB/cm derated (W/cm2)
|
13.4 |
6.0 |
1.2 |
12.4 |
5.1 |
0.3 |
4.0 |
|
Focal Lateral Width - diameter (mm)
|
6.45 |
3.14 |
1.53 |
11.40 |
5.90 |
5.90 |
0.46 |
|
Focal Axial Length - minimum (mm)
|
16.2 |
7.4 |
5.7 |
23.9 |
15.0 |
22.4 |
2.0 |
|
Focal Axial Length - maximum (mm)
|
48.2 |
26.7 |
14.1 |
40.1 |
41.5 |
73.6 |
3.5 |
|
Penetration Distance - minimum (mm)
|
25 |
25 |
40 |
30 |
30 |
60 |
10 |
|
Penetration Distance - maximum (mm)
|
60 |
60 |
60 |
50 |
50 |
120 |
16.5 |
Compatible Products
This product can be used in combination with some of our other systems. Find out more by selecting one from the list below.
Associated Techniques
To find out more about the techniques that are applicable to this product, follow the links below.
