Our TMS-EMG complete research package is designed to integrate transcranial magnetic stimulation (TMS) with high-fidelity electromyography (EMG) recordings. By combining advanced stimulation technology with precision signal acquisition, this package enables researchers to explore motor pathways, cortical excitability, and neuromuscular function with unparalleled accuracy.
TMS-EMG Package

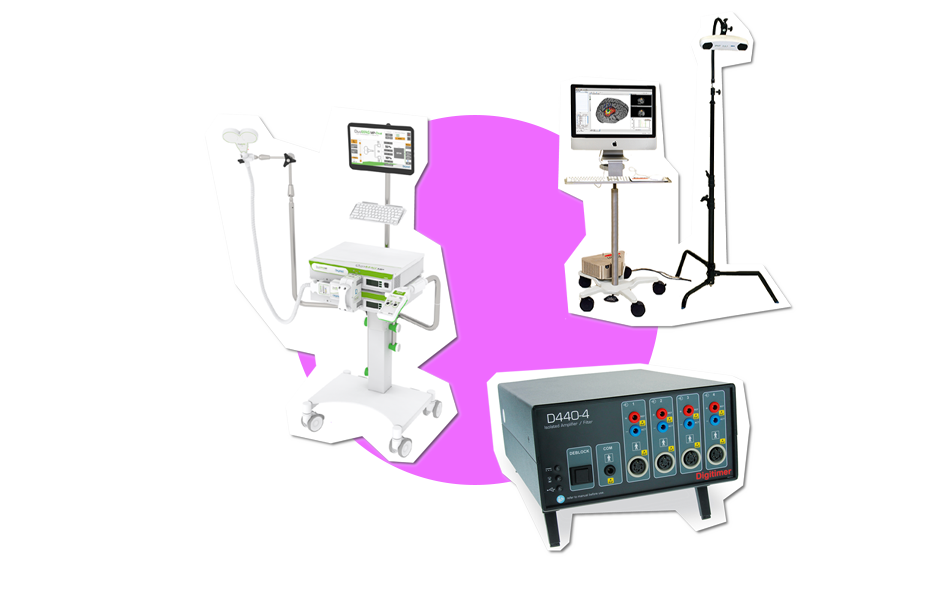

Includes: DuoMag MP-Dual, DIGITIMER EMG Amplifiers, Brainsight Neuronavigation
The TMS-EMG package combines advanced brain stimulation, electrophysiological recording, and navigation systems into one high-performance platform. Designed for precision neuromuscular research, this package enables researchers to investigate motor pathway dynamics, cortical excitability, and neuromuscular responses with synchronised stimulation and high-fidelity EMG signal acquisition.
-
TMS System: The DuoMAG MP-Dual provides fully programmable single and paired-pulse stimulation through a single coil. This allows independent control over pulse intensity and timing—ideal for probing inter-cortical and intra-cortical interactions.
-
EMG System: The integrated EMG solution combines research-grade amplifiers with powerful data acquisition hardware. Adjustable gain, bandwidth, and filtering options ensure accurate capture of TMS-evoked responses, including motor evoked potentials (MEPs).
-
Neuronavigation System: Brainsight TMS Navigation ensures precise coil positioning by aligning stimulation targets with individual MRI scans. This guarantees consistency and reproducibility across subjects and sessions.
Seamless Integration & High-Performance Technology
This complete solution is optimised for neuromuscular studies, enabling researchers to synchronise TMS delivery with EMG signal acquisition. Whether mapping motor pathways or investigating cortical excitability, the system delivers clean, time-locked physiological data and reproducible targeting.
-
Accurate synchronisation between stimulation and EMG capture.
-
Real-time targeting with MRI-guided coil placement.
-
User-friendly interface for smooth setup, recording, and analysis.
Flexible TMS for Advanced Neurostimulation
With programmable stimulation protocols and dual-pulse capabilities, the DuoMAG MP-Dual offers the flexibility needed for advanced TMS paradigms. Researchers can tailor stimulation protocols to target motor cortex regions with precision.
-
Single and paired-pulse stimulation modes.
-
Independent pulse intensity and interval control.
-
Boosted stimulation output for high-demand studies.
-
CE-certified for safe, research-grade operation.
High-Fidelity EMG Recording
The EMG system captures neuromuscular responses with precision. Paired with robust amplifiers and a high-speed data acquisition unit, the system offers clean, synchronised signal recording—optimised for motor evoked potential (MEP) detection and analysis.
Highlights include:
-
Low-noise, high-resolution signal amplification.
-
Adjustable gain and filter settings.
-
Real-time TMS pulse triggering and timestamping.
-
Flexible channel configuration for multi-muscle recordings.
Precision Neuronavigation with Brainsight
Brainsight delivers MRI-guided TMS navigation for reliable, repeatable stimulation. Real-time 3D tracking and anatomical alignment help researchers maintain consistency and target specificity during motor mapping studies.
-
Real-time feedback on coil positioning.
-
Integration with TMS triggers and EMG monitoring.
-
Visualisation of stimulation sites in anatomical context.
-
Support for individualised and group-based studies.
Expand all
Collapse all
Synchronous TMS-EMG Data Capture
Accurate temporal alignment of stimulation and muscle activity recording to support reliable MEP measurement and cortical excitability studies.
High-Resolution EMG Recording
Low-noise amplifiers with adjustable gain and bandwidth ensure clean recordings of motor evoked potentials across a range of experimental conditions.
Flexible Stimulation Protocols
Support for single and paired-pulse paradigms enables comprehensive exploration of motor pathways and inter-cortical interactions.
End-to-End Integration
All components work together seamlessly, enabling researchers to focus on experimental design without complex configuration.
Category | Specification |
---|---|
TMS Stimulation | |
Pulse Type | Monophasic paired-pulse via single coil |
Inter-Stimulus Interval | Fully programmable (1 ms – 10,000 ms) |
Output Control | Independent per pulse; programmable intensity |
Boosted Output Mode | Equivalent to 134% of single stimulator output |
Cooling | Air-cooled with coil temperature monitoring |
Certification | CE-certified for research use |
EMG Amplifier | |
Channel Count | 2–8 channels (expandable depending on model) |
Gain | Adjustable (up to 10,000x depending on amplifier model) |
Bandwidth | DC to 10 kHz (user configurable) |
Input Type | Differential, high impedance |
Input Noise | < 1 μV RMS (typical) |
Filtering | Adjustable analog and digital filters |
Trigger Input | TTL trigger from TMS system for pulse marking |
Compatibility | Optimised for detecting MEPs |
Data Acquisition Unit | |
Sampling Rate | Up to 200 kHz per channel |
Resolution | 16–24-bit A/D conversion |
Synchronisation | Hardware-timed trigger alignment with TMS pulses |
Data Export | Raw data output in CSV, MATLAB, or binary formats |
Neuronavigation | |
Navigation Method | Optical tracking with MRI co-registration |
Spatial Accuracy | ≤ 5 mm (typical) |
Coil Feedback | Real-time position and angle relative to target |
Imaging Compatibility | DICOM, Analyze, NIfTI formats |
Integration | Synchronises with TMS and EMG event triggers |
General System | |
Synchronisation | Full integration across TMS, EMG, and Navigation |
Software Suite | Unified GUI with visualisation, recording, and stimulation control |
Applications | Motor mapping, MEP detection, cortical excitability, neuromodulation |
